Twin Screw Direct Expansion Puff Snack Production Line

(stuffing type)

Twin Screw Direct Expansion Puff Snack Production Line (stuffing type)
Video Show
Inquiry

The stuffing type puffed snack food was produce by twin screw extruder, it is puffed the corn flour directly and stuffed the cream or any jams into it, and then cut the puff snack to required size by shaping machine.

Samples
  • Twin Screw Direct Expansion Puff Snack Production Line (stuffing type)
  • Twin Screw Direct Expansion Puff Snack Production Line (stuffing type)
  • Twin Screw Direct Expansion Puff Snack Production Line (stuffing type)
  • Twin Screw Direct Expansion Puff Snack Production Line (stuffing type)
Parameters
  • Capacity 80-120kg/h
  • Reference Power 49 kW
  • Working Voltage 380V, 3-phase 50HZ
  • 160-240Kg/h
  • 64 kW
  • 380V, 3-phase 50HZ

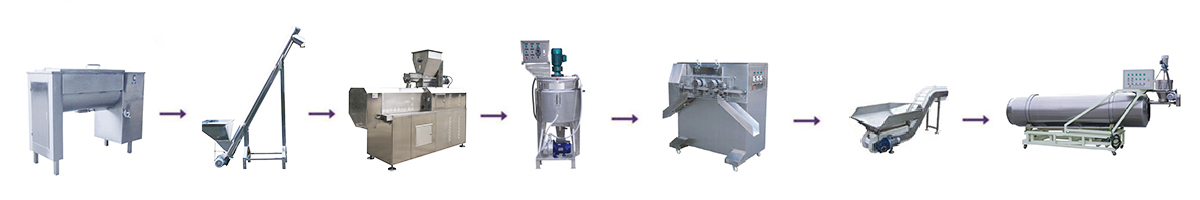

Main Processing Steps

The stuffing type puffed snack food was produce by Twin Screw Extruder, it is puffed the corn flour directly and stuffed the cream or any jams into it, and then cutted the puff snack to required size by shaping machine.

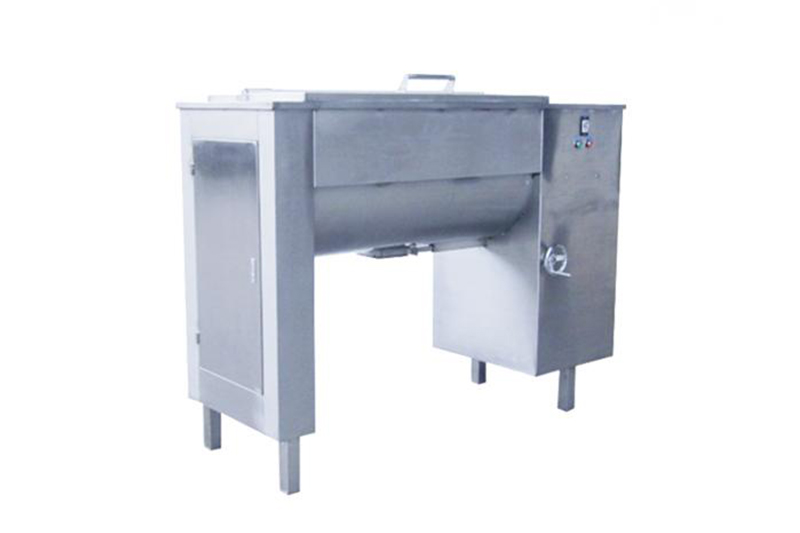

CLB Mixer

CLB mixer is the horizontal mixing machine, it is used to mix up different material and get ready for extruding.

Parameters

  • capacity: 500 kg/h
  • Power: 7.5kW
  • Dimension: 2280x 820 mmx1980 mm
Request a Quote

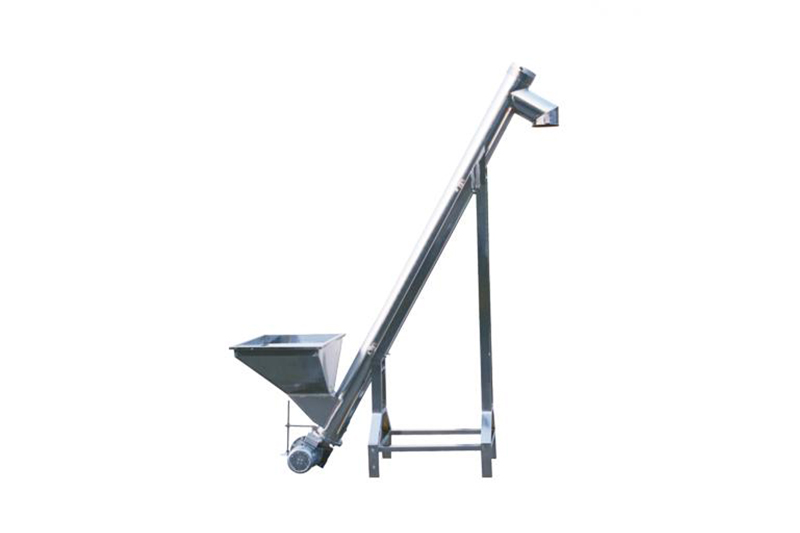

ST Screw Feeder

Screw feeder is used for feeding the raw material into extruder from the mixer.

Parameters

  • Capacity: 180-240kg/h
  • Power: 1.1kW
  • Dimension: 2000x700x2600mm
Request a Quote

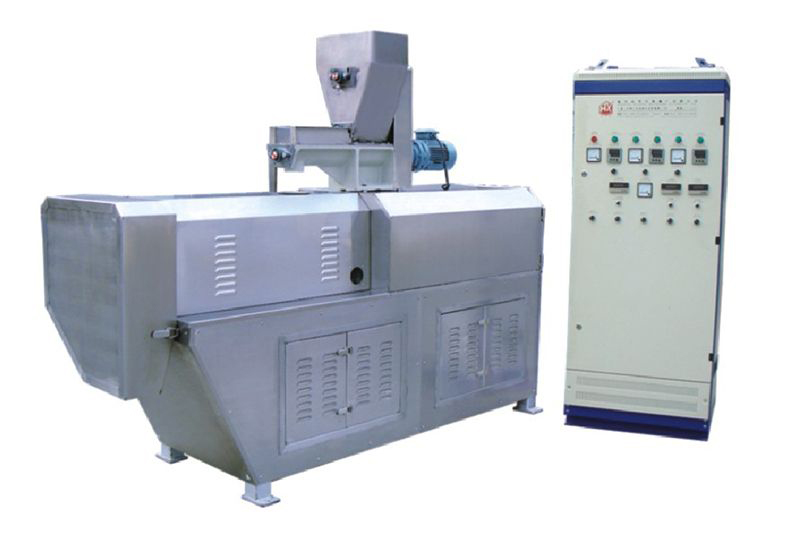

TS Twin Screw Extruder

TS twin screw extruder is the main machine of Twin screw direct expansion puff snack production line (stuffing type). It is suitable for using powder as raw material. This extruder is used for extruding the raw material, and extrude the puffed snacks by different shape of die.

Parameters

  • capacity: 80-120kg/h
  • Power: 24kW
  • Dimension: 2540×850×1850mm
Request a Quote

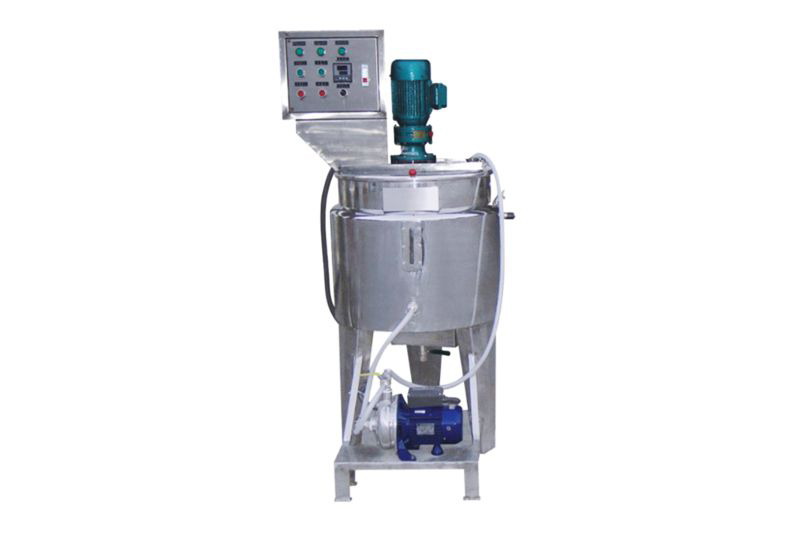

Stuffing Machine

The stuffing machine will work in conjunction with extruders, it is always used to fill the cream into the puff snack of bar shape.

Parameters

  • capacity: matching with the Extruder.
  • Power: 1.8kW
  • Dimension: 1200×1000×1500mm
Request a Quote

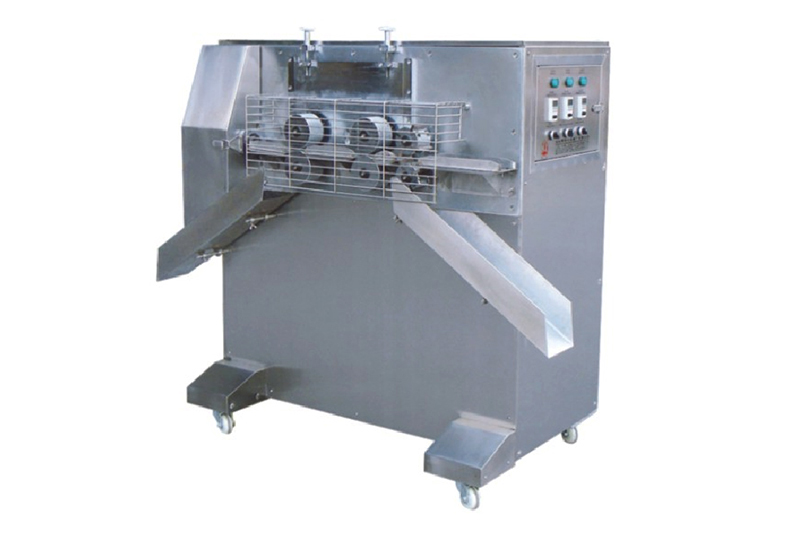

ZX Shaping machine

ZX Shaping machine, it is used for surface finishing the tube shape puff snack from the Twin screw extruder.

Parameters

  • capacity: Matching with extruder
  • Power: 1.5kW
  • Dimension: 1360×820×1430mm
Request a Quote

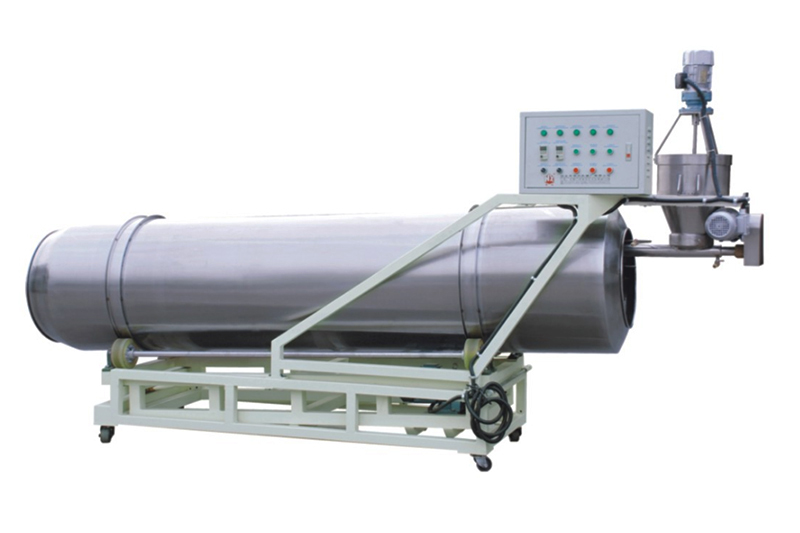

LX200-Continuous Seasoner

LX200-continuous seasoner is one of the flavoring machine to flavor the snacks after drying, this model can connect the oil spray tank for flavoring. It not only fit for spray flavoring oil but also powder. It makes the chips taste more excellent.

Parameters

  • Capacity: 150-300kg/h
  • Power: 1.75kW
  • Dimension: 4020x930x2050mm
Request a Quote
