Single Screw Direct Expansion Puff Snack Production Line
Single Screw Direct Expansion Puff Snack Production Line
Video Show
Inquiry

The single screw direct expansion puff snack production line, extruding the raw materials as corn grit, through to change a variety of different shape of moulds to get different shape of snacks, and then dried it and flavoring the products by the seasoner to get the crispy and delicious snacks.

Samples
  • Single Screw Direct Expansion Puff Snack Production Line
  • Single Screw Direct Expansion Puff Snack Production Line
  • Single Screw Direct Expansion Puff Snack Production Line
  • Single Screw Direct Expansion Puff Snack Production Line
Parameters
  • Capacity 150-180kg/h
  • Reference Power 60.02kW
  • Working Voltage 380V, 3-phase 50HZ
  • 240-300kg/h
  • 102 kW
  • 380V, 3-phase 50HZ

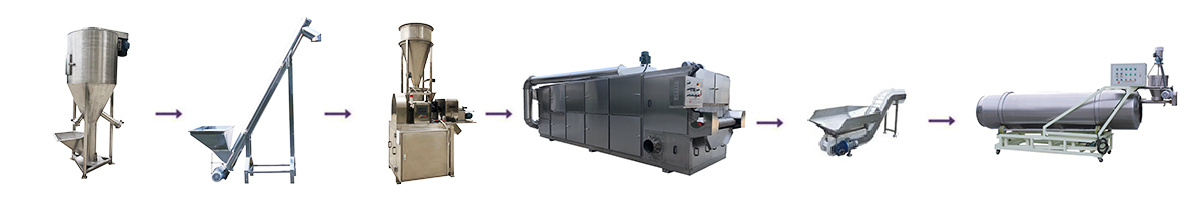

Main Processing Steps

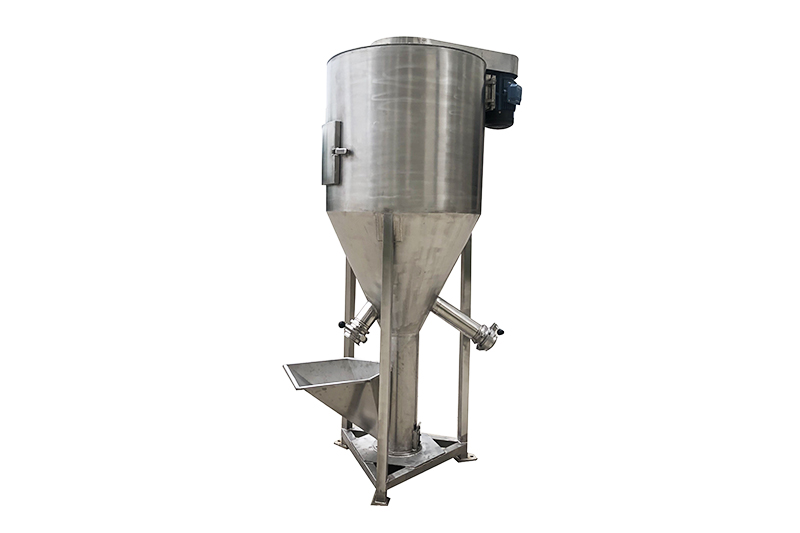

XX-Mixer

Function: Mixing the material

Parameters

  • Capacity: 300-400kg/h
  • Power: 3.65kW
  • Dimension: 1920 x 1600x 2450 mm
Request a Quote

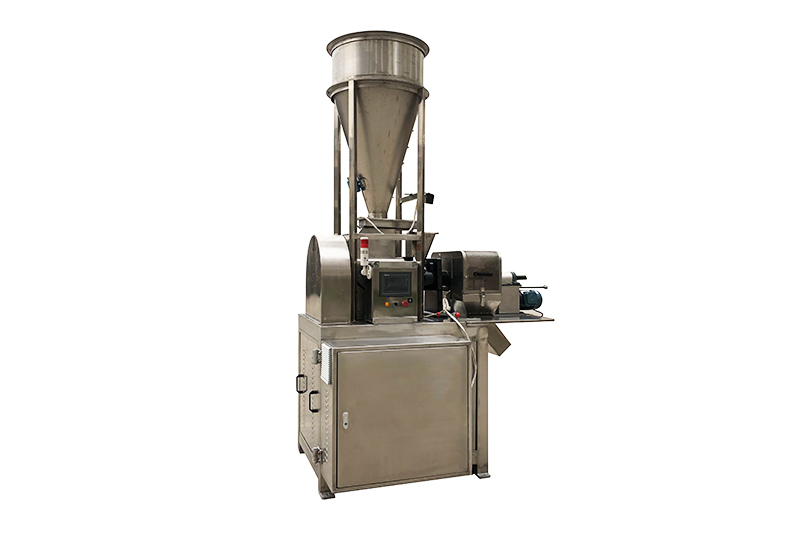

MD Single Screw Extruder

Function: Produce puff snack through different die.

Parameters

  • Capacity: 120-180kg/h
  • Power: 37.55kW
  • Dimension: 2100 x 1600 x 2550mm
Request a Quote

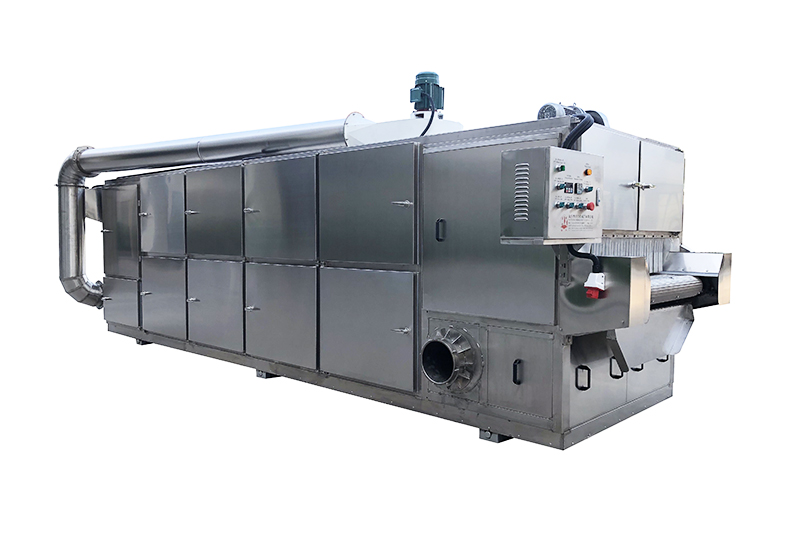

300S Drying Machine

300S dryer is high-temperature dryer, which is used to reduce moisture from pellet or puff snacks. This continuous dryer is 3 layers dryer with gas burner or diesel oil or Steam as the heating function.

Parameters

  • Capacity: 480kg/h
  • Power: 5.5kW
  • Dimension: 7600*1850*2380mm
Request a Quote

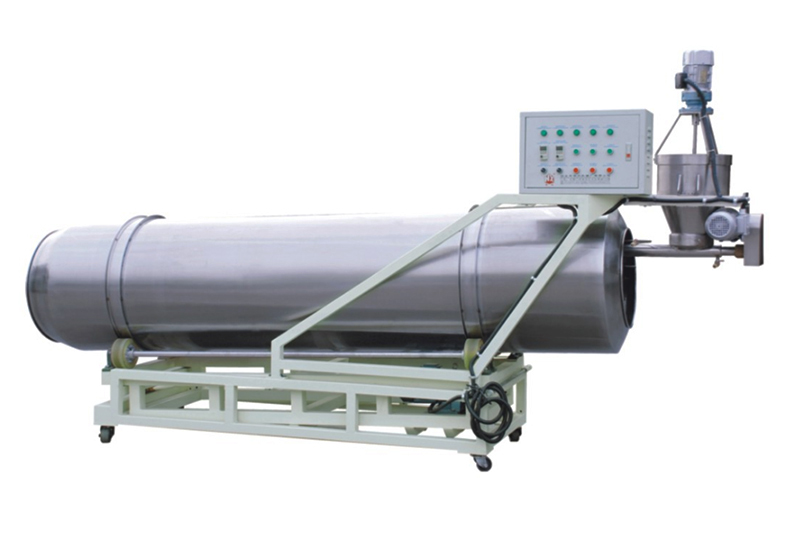

LX200 Continuous Seasoner

LX200 continuous seasoner is one of the flavoring machine to flavor the snacks after drying, this model can connect the oil spray tank for flavoring. It not only fit for spray flavoring oil but also powder. It makes the chips taste more excellent.

Parameters

  • Capacity: 150-300kg/h
  • Power: 1.75kW
  • Dimension: 4020x930x2050mm
Request a Quote
