Twin Screw Direct Expansion Puff Snack Production Line

(baked type)

Twin Screw Direct Expansion Puff Snack Production Line
Video Show
Inquiry

Twin screw direct expansion puff snack production line (baked type) is fit for making various kinds of expansion foods, which uses corn and rice as the raw material by changing different moulds. The main machine is TS-Twin screw expansion machine, expansion cereals products extruded from either of the above main machines can be processed into different kinds of puff snacks. Products made by this production line are crisp even without frying.

Samples
  • Twin Screw Direct Expansion Puff Snack Production Line (baked type)
  • Twin Screw Direct Expansion Puff Snack Production Line (baked type)
  • Twin Screw Direct Expansion Puff Snack Production Line (baked type)
  • Twin Screw Direct Expansion Puff Snack Production Line (baked type)
Parameters
  • Capacity 80-120kg/h
  • Reference Power 49 kW
  • Working Voltage 380V, 3-phase 50HZ
  • 160-240kg/h
  • 64 kW
  • 380V, 3-phase 50HZ
Main Processing Steps

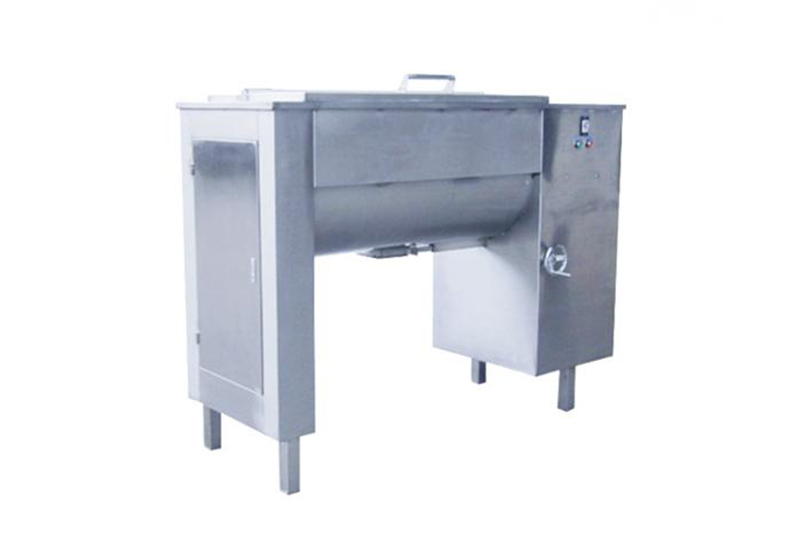

CLB Mixer

CLB-Mixer is the horizontal mixing machine, it is used to mix up different material and get ready for extruding.

Parameters

  • Capacity: 500 kg/h
  • Power: 7.5kW
  • Dimension: L-2280mm, W- 820 mm, H-1980 mm
Request a Quote

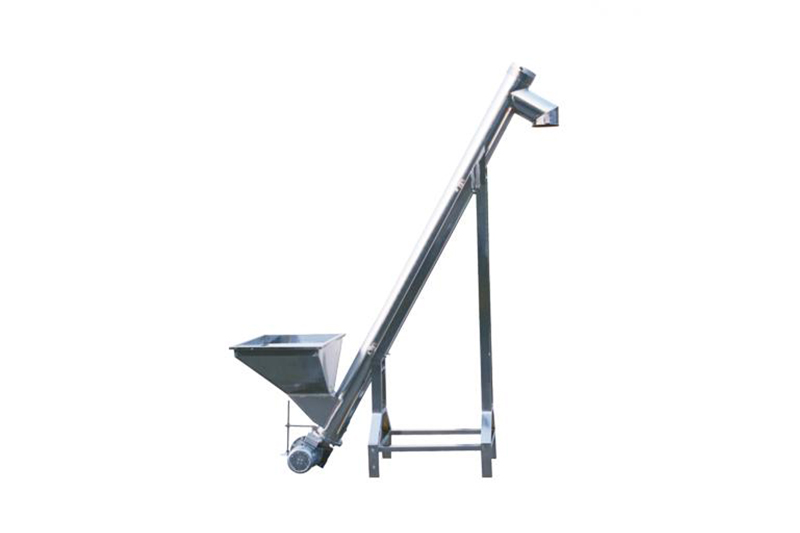

ST Screw Feeder

Screw feeder is used for feeding the raw material into extruder from the mixer.

Parameters

  • Capacity: 180-240kg/h
  • Power: 1.1kW
  • Dimension: 2000x700x2600mm
Request a Quote

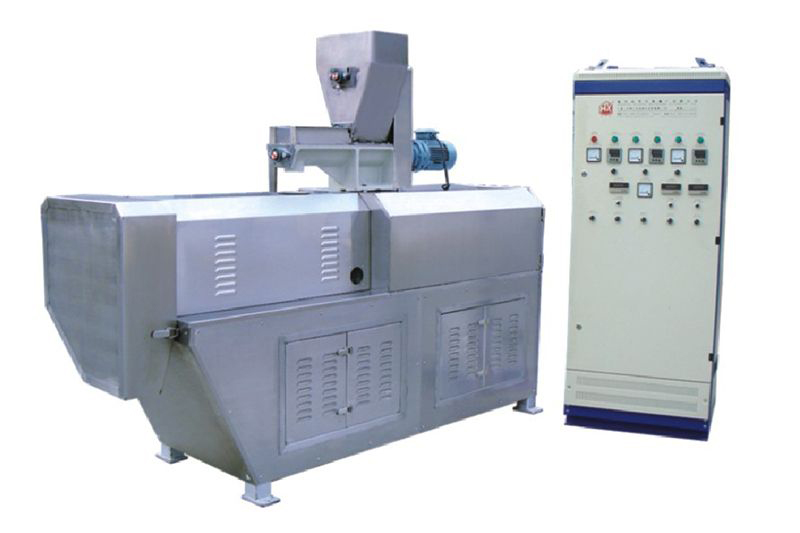

TS Twin Screw Extruder

TS twin screw extruder is the main machine of twin screw direct expansion puff snack production line (baked type). It is suitable for using powder as raw material. This extruder is used for extruding the raw material, and extrude the puffed snacks by different shape of die.

Parameters

  • Capacity: 80-120kg/h
  • Power: 24kW
  • Dimension: 2540×850×1850mm
Request a Quote

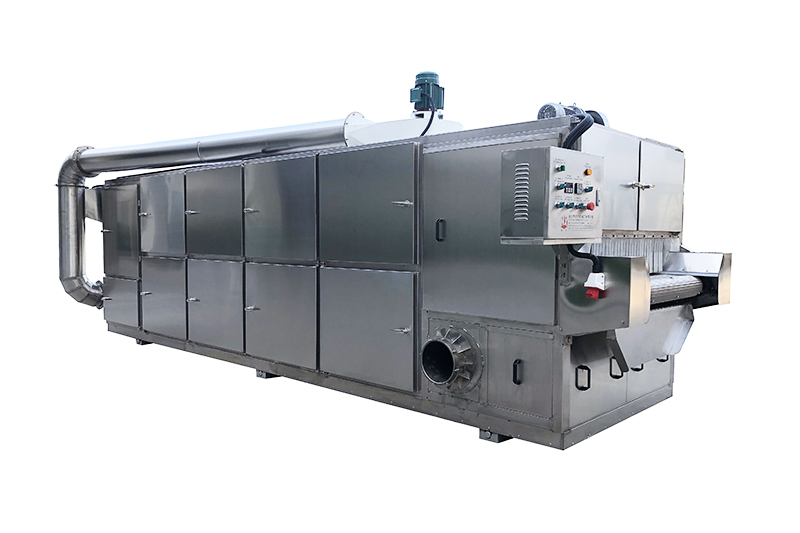

300s Dryer

300S dryer is high temperature dryer, which is used to reduce moisture from pellet or puff snacks. This continuous dryer is 3 layers dryer with gas burner or diesel oil or Steam as the heating function.

Parameters

  • Capacity: 480kg/h
  • Power: 5.5kW
  • Dimension: 7600x1850x2380mm
Request a Quote

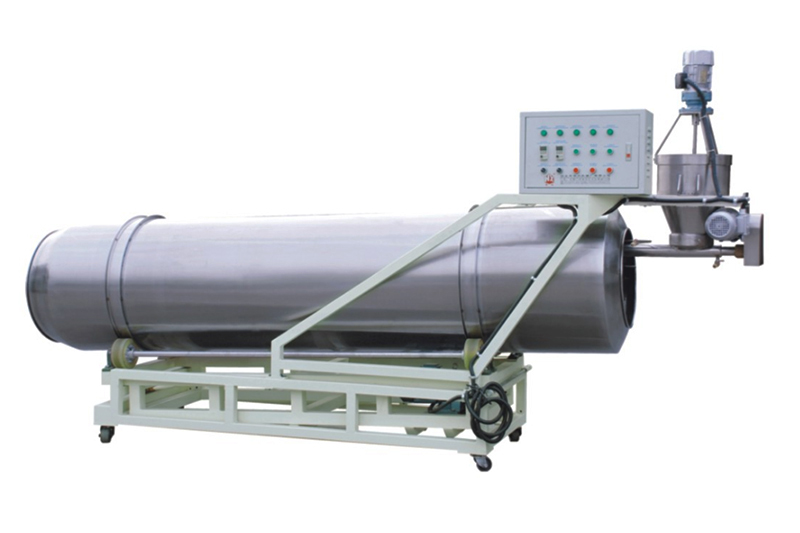

LX200 Continuous Seasoner

LX200 continuous seasoner is one of the flavoring machine to flavor the snacks after drying, this model can connect the oil spray tank for flavoring. It not only fit for spray flavoring oil but also powder. It makes the chips taste more excellent.

Parameters

  • Capacity: 150-300kg/h
  • Power: 1.75kW
  • Dimension: 4020x930x2050mm
Request a Quote
