Steam Cooking System Production Line of Snack Pellets (deep oil frying) / Prawn Cracker Production Line
Steam cooking extrusion systems production line of snack pellets is fit for those raw material like tapioca starch, corn starch, wheat flour, etc. In short time, cooking and mixing those materials by steam into sticky dough. And then press it into dough sheet with average thickness and surface. After cooled, it can be cut into various shapes, and then dry and make into snack pellets with different shapes. At last, conductive expansion or deep oil fry them into shrimp stick or prawn cracker.
Samples
Main Processing Steps
Steam cooking system production line of snack pellets (deep oil frying) / prawn cracker production line provides a complete production process, including steam cooking, sheeting, cooling, cutting, first drying, second drying, frying and flavoring.

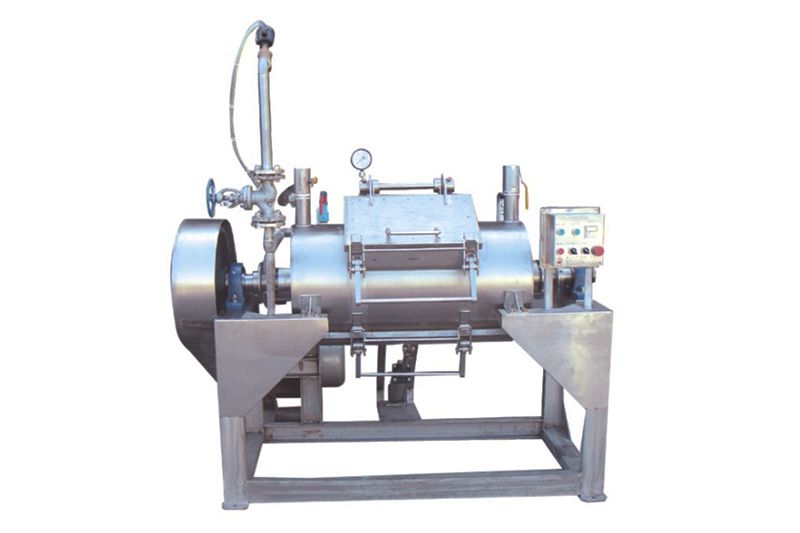

As the main machine of steam cooking system production line of snack pellets (deep oil frying) / prawn cracker production line, steam cooking machine uses steam to cook raw materials. HX’s upgraded steam cooking machine is also available for you, which enjoys better cooking technology and higher level.
Parameters
- capacity: 180-240kg/h
- Power: 11kW
- Dimension: 2030×770×1540mm
Request a Quote

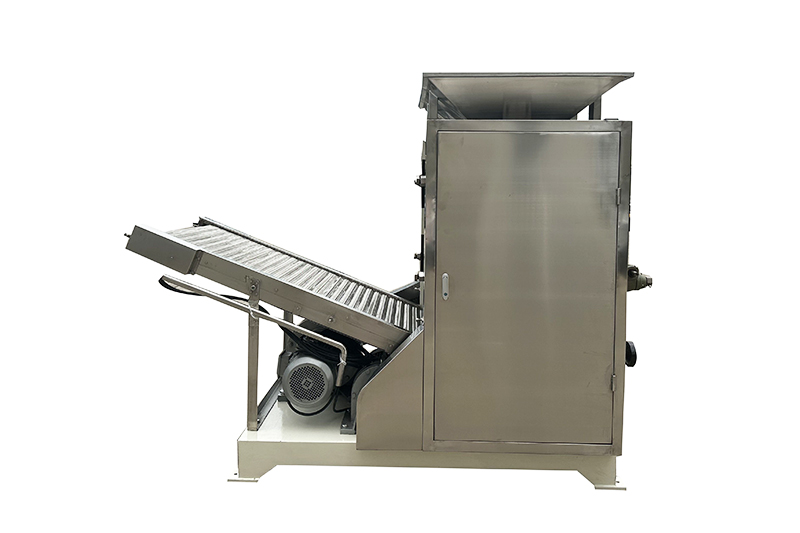

This sheeter further processes cooked dough into dough sheets, whose thickness is adjustable.
Parameters
- capacity: 200-250kg/h
- Power: 5.5kW
- Dimension: 2060×1250×1920mm
Request a Quote

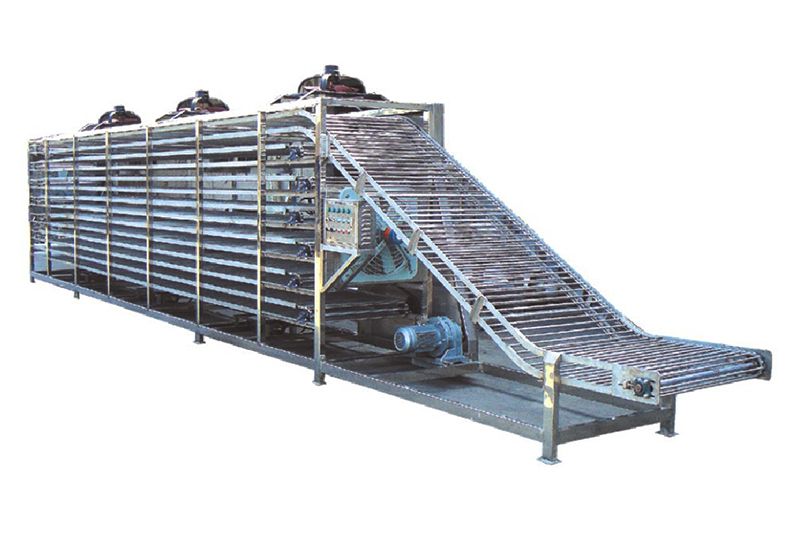

Shrimp chip cooling machine is of stainless steel structure. Equipped with a multi-layer conveying system, our cooling machine enables the cooling of dough sheets. Automatic reeling machine is also available in HX, allowing higher efficiency and lower labor costs.
Parameters
- capacity: 200-250kg/h
- Power: 2.75kW
- Dimension: 9430×930×1980mm
Request a Quote

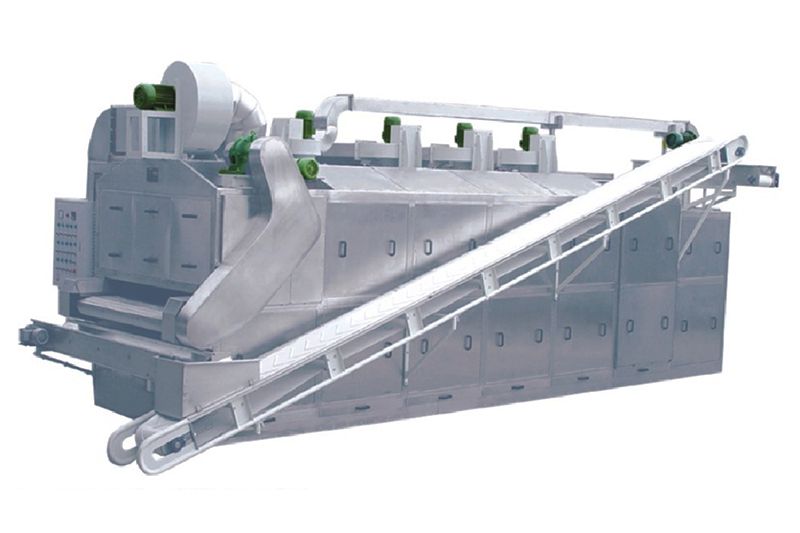

3600SL continuous dryer delivers first drying towards cooled dough sheets. It can help to reduce the water in semi-finished materials.
Parameters
- capacity: 200-250kg/h
- Power: 12kW
- Dimension: 10300x3130x3042mm
Request a Quote

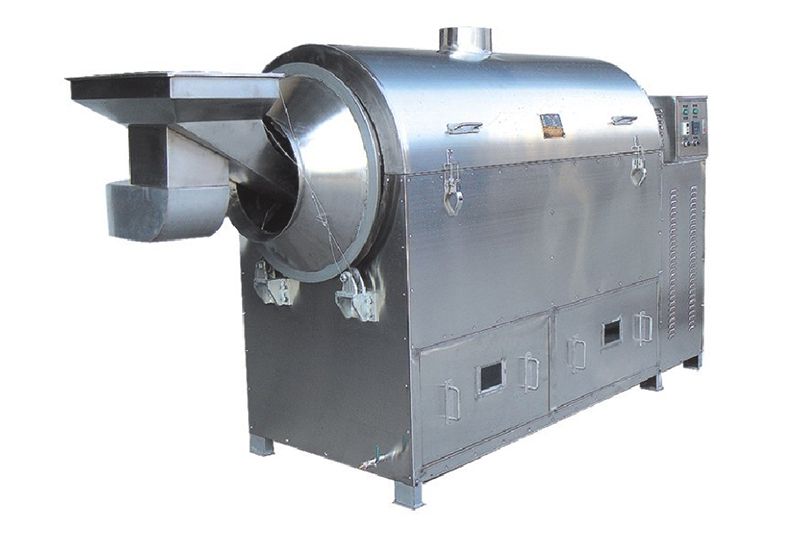

After 3600SL continuous dryer’s processing, HHG revolving dryer delivers second drying towards materials. It has automatic feeding and discharging system and can be heated with electricity or gas.
Parameters
- capacity: 120 kg/batch
- Power: 1.1kW
- Dimension: 3300×1130×1580mm
Request a Quote

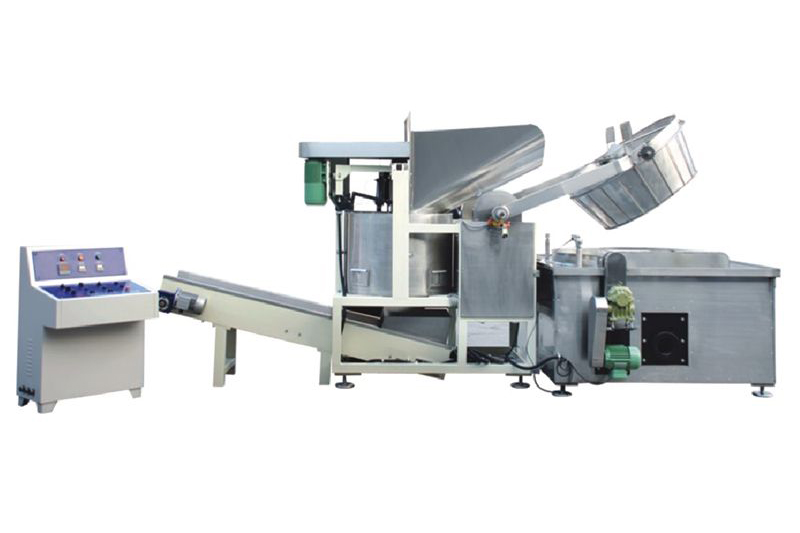

300S fryer, as a basic batch fryer, is mainly designed to, but not limited to, process semi-finished products. It has centrifugal deoiling and conveying systems, and allows adjustable frying temperature and time. It is one of HX’s best selling products.
Parameters
- capacity: 120kg/h
- Power: 4kW
- Dimension: 4500×1980×2020mm
Request a Quote

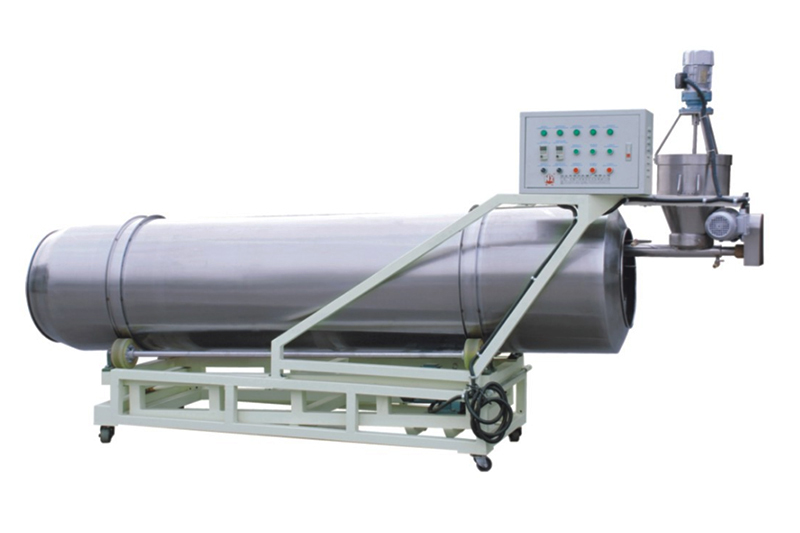

LX200 continuous seasoner is one of the flavoring machine to flavor the snacks after drying, this model can connect the oil spray tank for flavoring. It not only fit for spray flavoring oil but also powder. It makes the chips taste more excellent.
- Capacity: 150-300kg/h
- Power: 1.75kW
- Dimension: 4020x930x2050mm
Request a Quote
