Pillow & Stick Snack Production Line / Fried Snack Production Line
Fried Snacks Processing Machinery
Video Show
Inquiry

Stick & pillow snack processing line. Ingredients: 100% wheat flour--Deep frying oriental snack--Wheat flour formula snack machine 200kg and 400kg----Shantou Huaxing Food Processing Equipment

Samples
  • Fried Snacks Processing Machinery
  • Fried Snacks Processing Machinery
  • Fried Snacks Processing Machinery
  • Fried Snacks Processing Machinery
Parameters
  • Capacity 200kg/hr
  • Reference Power 17 kW
  • Working Voltage 380V, 3-phase 50HZ
  • 400kg/hr
  • 39 kW
  • 380V, 3-phase 50HZ
Main Processing Steps

Pillow & Stick Snack Production Line / Fried Snack Production Line is composed of material mixing, sheeting and forming, frying, drying and flavoring.

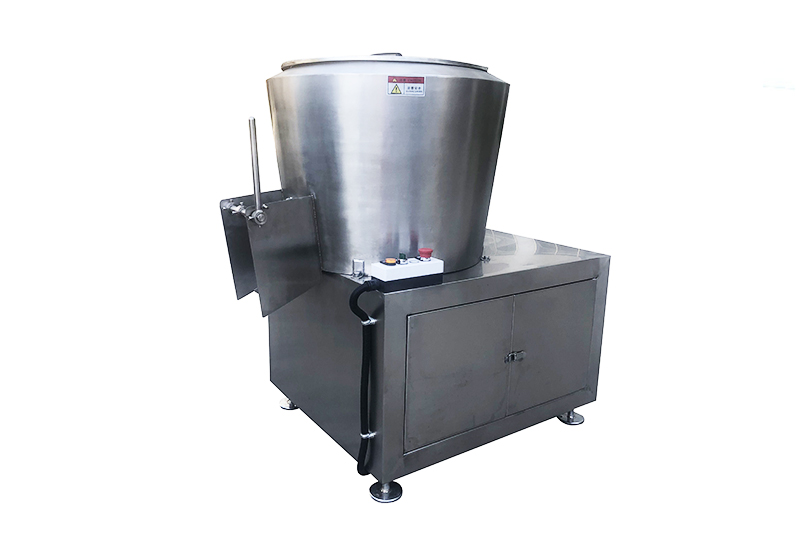

200S Flour Mixer

This flour mixer is use to mixing raw material with water.

Parameters

  • Capacity: 200kg/hr
  • Power: 1.5kW
  • Dimension: 1000x660x1180mm
Request a Quote

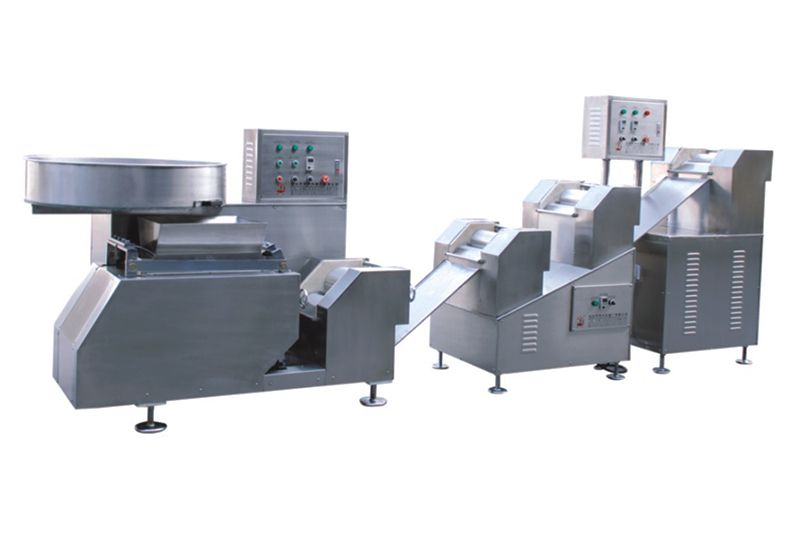

200S Pillow & Stick Snack Producer/350S Pillow & Stick Snack Producer

As the main machine of pillow & stick snack production line / fried snack production line, the pillow & stick snack producer is use to sheet the material by several rollers to make it into sheet and cut it into different shapes.

Parameters

  • Capacity: 200/ 400kg/hr
  • Power: 4.5kW / 17.8kW
  • Dimension: 2950x1250x1600mm, 8600x1500x1800mm
Request a Quote

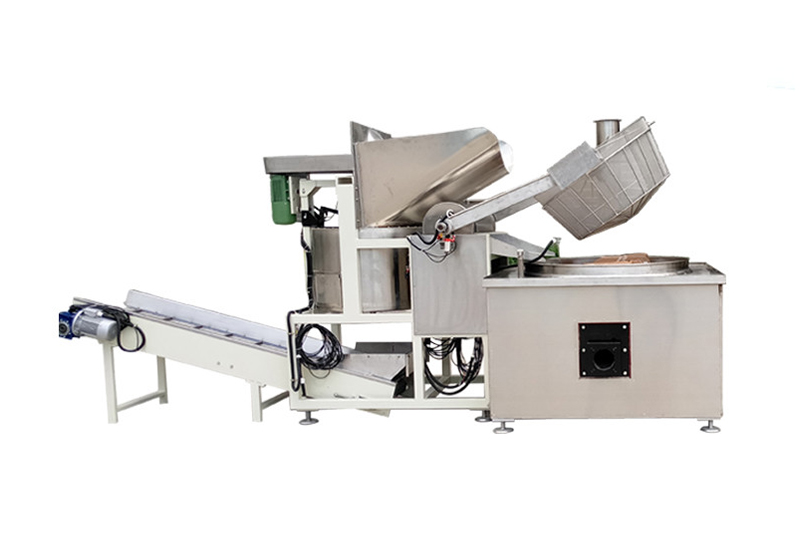

300S Batch Fryer

300S batch fryer is equipped with centrifuge de-oiling system and discharge conveyor. It is use to fry the pellets. Frying temperature and time adjustable. It is one of the hot sale product from Huaxing.

Parameters

  • Capacity: 100-120kg/hr
  • Power: 4kW
  • Dimension: 4550x1980x2020mm
Request a Quote

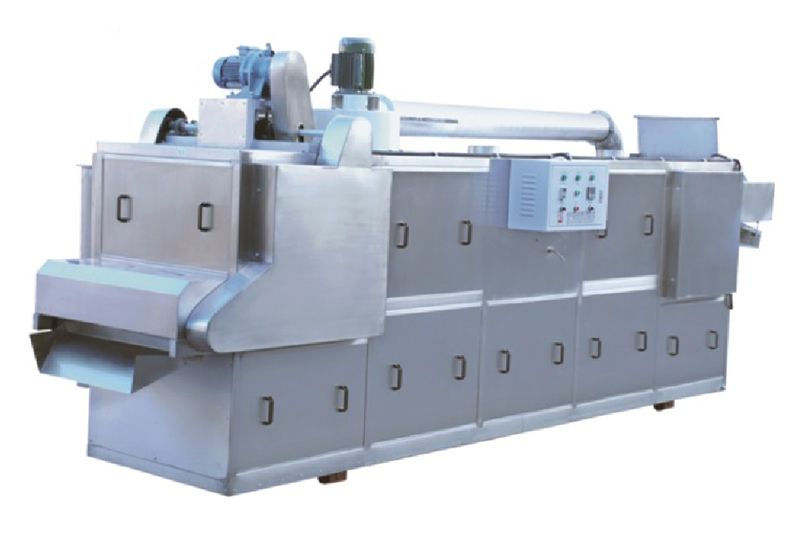

A300S Drying Machine

A300S drying machine is used to dry the pillow & stick snack products if by sweet flavoring only. Which can help to reduce the moisture from snacks and make it more crispy and tasty. There is the heating system of the dryer can be choose: diesel oil heating, gas heating, steam heating. This is a high temperature drying machine, drying temperature and drying time are adjustable, it dry the products by hot air circulate. In this way, a better thermal energy storage and higher thermal efficiency will be achieved.

Parameters

  • capacity: 120-240kg/hr
  • Power: 4kW
  • Dimension: 6100×1400×2380mm
Request a Quote

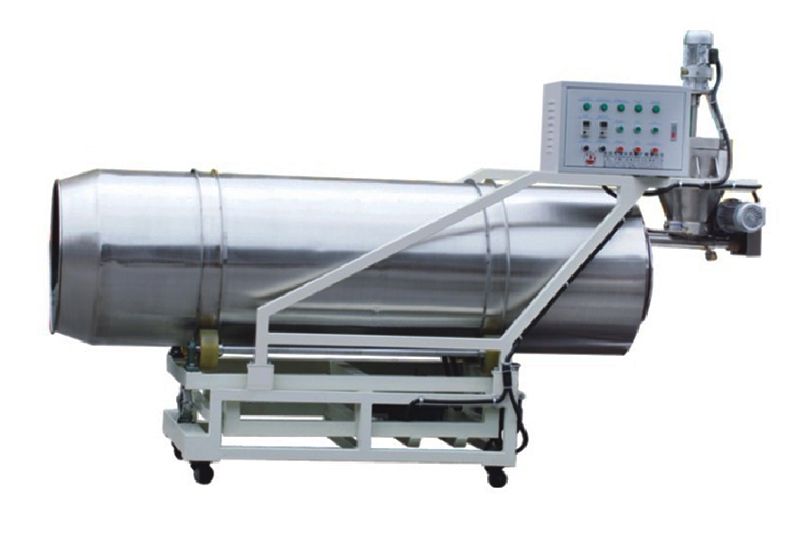

NZ180 Contiuous Seasoner

NZ180 continuous seasoner is used to flavor the snack after frying, It is fit for add some seasoning powder into the snacks to enhance its flavor. This model fit for dry flavor powder only. It makes the snacks taste more excellent.

Parameters

  • capacity: 120-200kg/hr
  • Power: 1.75kW
  • Dimension: 3200×930×2050mm
Request a Quote
